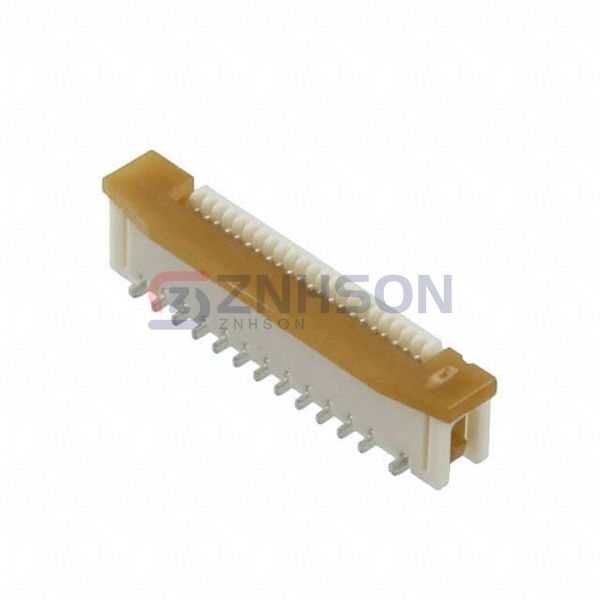

0525592270
Molex
Molex
CONN FFC VERT 22POS 0.50MM SMD
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0525592270 FFC/FPC Connectors by Molex deliver unparalleled reliability for mission-critical electronic systems. Designed with a dual-beam contact system, these connectors ensure low contact resistance and high mating stability even under mechanical stress. Applications range from underwater robotics to high-altitude aviation electronics, where the 0525592270's hermetic sealing options prove invaluable. Molex employs state-of-the-art SMT packaging for streamlined assembly processes. When failure is not an option, engineers worldwide trust 0525592270 connectors to maintain uninterrupted performance in extreme conditions.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount
- Connector/Contact Type: Contacts, Vertical - 1 Sided
- Number of Positions: 22
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.154" (3.90mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Polyamide (PA46), Nylon 4/6
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -40°C ~ 85°C
- Material Flammability Rating: UL94 V-0
Related Products
Amphenol ICC (FCI)
10022753-014LF
JAE Electronics
FA5S015HP1
Hirose Electric Co Ltd
FH26-39S-0.3SHW(05)
Hirose Electric Co Ltd
FH10A-20S-1SH
JAE Electronics
FB8S029JA1
Hirose Electric Co Ltd

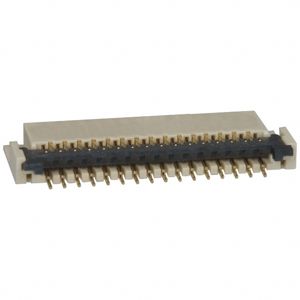

FH23-31S-0.3SHW(10)
JAE Electronics
FB6S059JA1
Amphenol ICC (FCI)

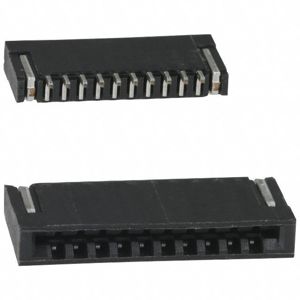

HFW10R-2STE1
