0530470960
Molex
Molex
HDR VERT 9 CIRC 1.25 DIP TH
$0.47
Available to order
Reference Price (USD)
1+
$0.46797
500+
$0.4632903
1000+
$0.4586106
1500+
$0.4539309
2000+
$0.4492512
2500+
$0.4445715
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0530470960 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0530470960 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 9
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.089" (2.25mm)
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
Related Products
Samtec Inc.
TSM-106-01-LM-SH-002-TR
Samtec Inc.
TSM-109-01-T-DV-P
Samtec Inc.
MTLW-109-06-G-D-135
Samtec Inc.
FTS-115-01-F-DV
Sullins Connector Solutions
GEC02SBSN-M89
Harwin Inc.
G125-MV12005L1P
Samtec Inc.
MTSW-120-07-G-D-240
Samtec Inc.
TMM-105-01-S-S-RA

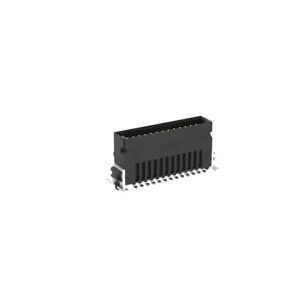

TE Connectivity Erni
