0530471260
Molex
Molex
HDR VERT 12 CIRC 1.25 DIP TH
$1.33
Available to order
Reference Price (USD)
1+
$1.33000
500+
$1.3167
1000+
$1.3034
1500+
$1.2901
2000+
$1.2768
2500+
$1.2635
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

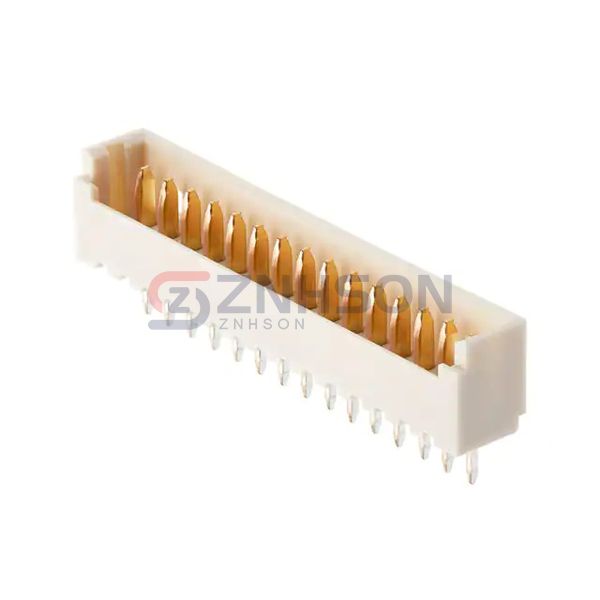

The 0530471260 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0530471260 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.089" (2.25mm)
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.165" (4.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
Related Products
Preci-Dip
890-18-018-10-002101
Molex
0346910120
Sullins Connector Solutions
PBC36DAEN
Molex
0416720046
Preci-Dip
800-80-046-20-004101
Sullins Connector Solutions
PBC12DFBN
Molex
0022233063

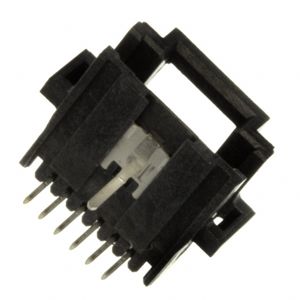

TE Connectivity AMP Connectors
104074-8

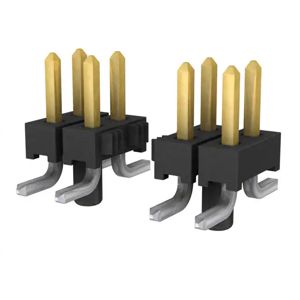

Samtec Inc.
