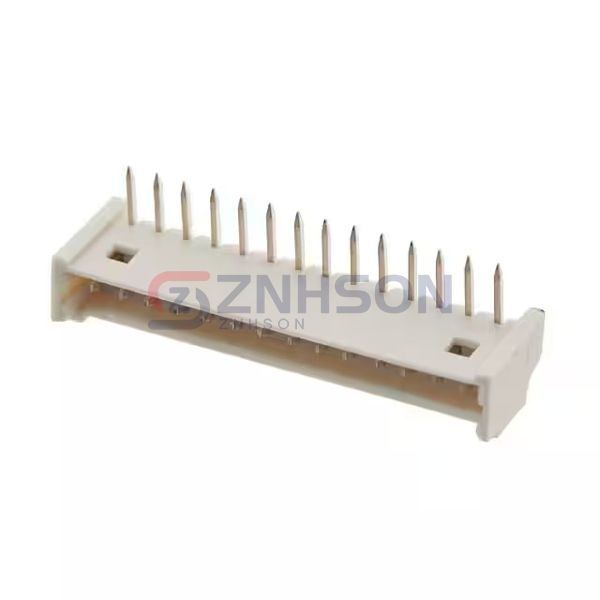

0530481450
Molex
Molex
CONN HEADER R/A 14POS 1.25MM
$2.58
Available to order
Reference Price (USD)
1+
$2.58000
500+
$2.5542
1000+
$2.5284
1500+
$2.5026
2000+
$2.4768
2500+
$2.451
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0530481450 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0530481450 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.091" (2.30mm)
- Overall Contact Length: -
- Insulation Height: 0.138" (3.50mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 125V
Related Products
Samtec Inc.
TSM-106-02-T-DH-LC
Samtec Inc.
HTSW-104-07-SM-D
TE Connectivity AMP Connectors
6-534978-5
Amphenol ICC (FCI)
71918-120LF
Samtec Inc.

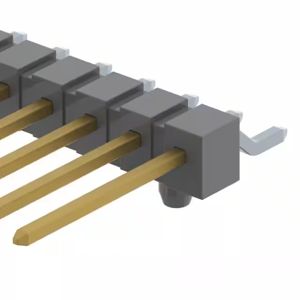

TSM-112-03-L-SH-A
Preci-Dip

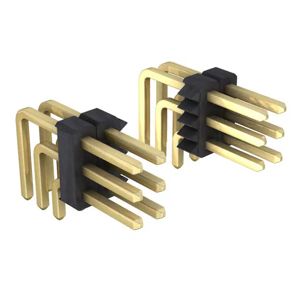

894-70-120-20-002101
Würth Elektronik

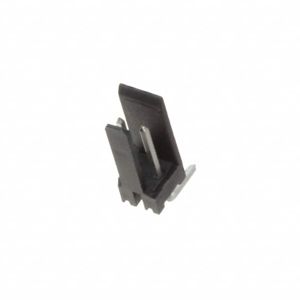

66100211722
Samtec Inc.

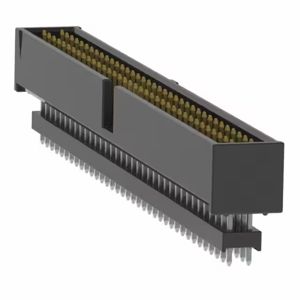

ZSS-136-01-S-D-540
