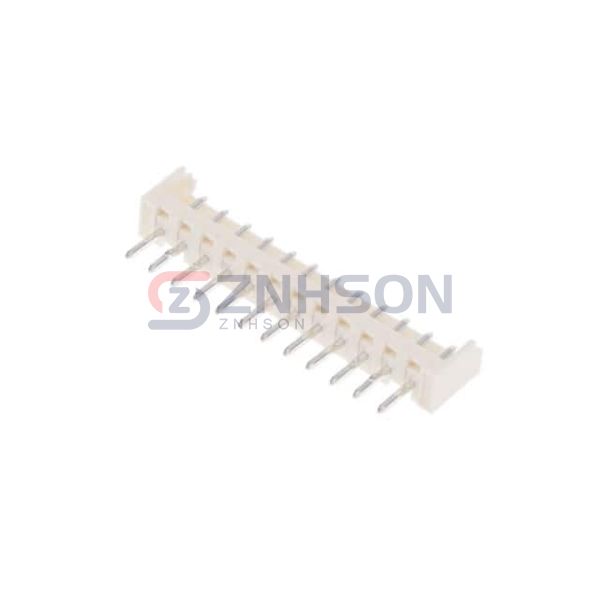

0532531270
Molex
Molex
CONN HEADER VERT 12POS 2MM
$0.71
Available to order
Reference Price (USD)
1+
$0.71000
500+
$0.7029
1000+
$0.6958
1500+
$0.6887
2000+
$0.6816
2500+
$0.6745
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0532531270 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.130" (3.30mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.331" (8.40mm)
- Insulation Height: 0.217" (5.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Molex
1511173024
TE Connectivity AMP Connectors
2-178140-5
Preci-Dip
350-80-154-00-006101
Amphenol ICC (FCI)
68458-204HLF
Hirose Electric Co Ltd
HIF3BB-50P-2.54W(88)

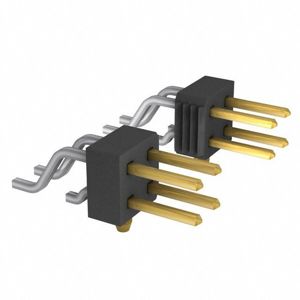

Samtec Inc.
TSM-132-01-S-DH-A
Harwin Inc.
M20-9730946
Samtec Inc.
FTS-124-01-F-DV-P

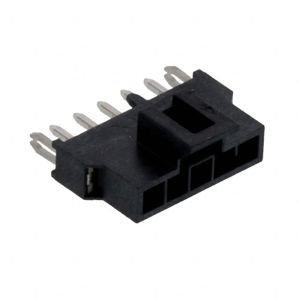

Molex
