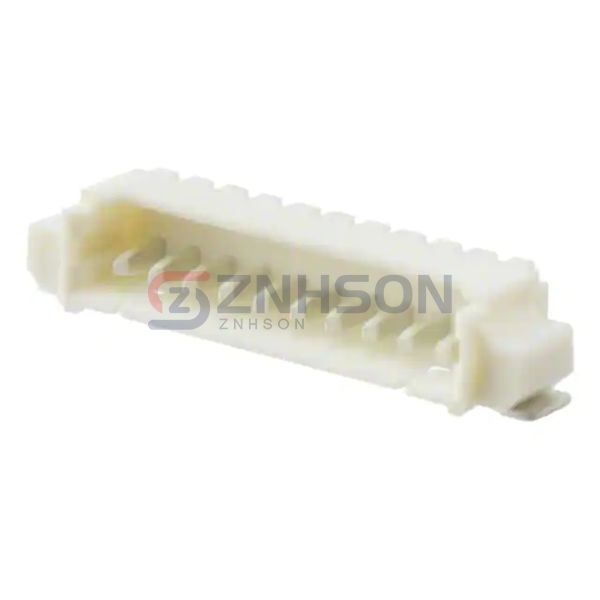

0532611071
Molex
Molex
CONN HEADER SMD R/A 10POS 1.25MM
$1.01
Available to order
Reference Price (USD)
1,000+
$0.48128
2,000+
$0.45120
3,000+
$0.43616
5,000+
$0.42112
10,000+
$0.40006
25,000+
$0.39104
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0532611071 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.134" (3.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6
- Features: Solder Retention
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
103673-7
Preci-Dip
450-10-238-00-013101
Samtec Inc.
MMT-116-01-L-DH-P
TE Connectivity AMP Connectors
9-103765-0-31
Samtec Inc.
IPL1-115-01-L-D-RA-K
HARTING
09185506923
3M
929836-09-13
Preci-Dip

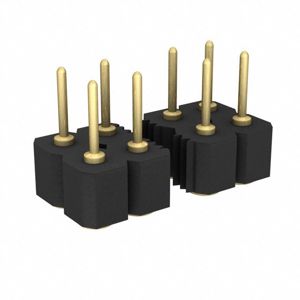

802-10-030-30-480101
TE Connectivity AMP Connectors

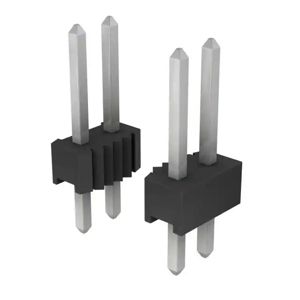

4-103322-0-34
