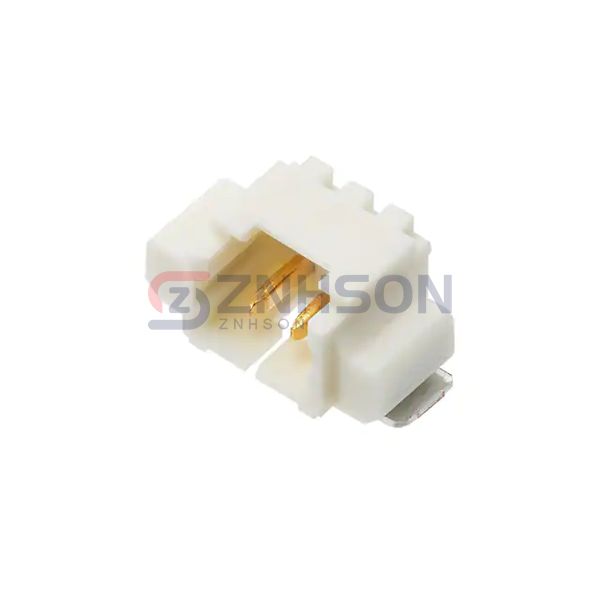

0532614005
Molex
Molex
HDR RA 5 CIRC 1.25 DIP SMD
$0.93
Available to order
Reference Price (USD)
1+
$0.93000
500+
$0.9207
1000+
$0.9114
1500+
$0.9021
2000+
$0.8928
2500+
$0.8835
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0532614005 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0532614005 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.134" (3.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
Related Products
Samtec Inc.
TSW-145-23-S-D
Sullins Connector Solutions
PEC01DFBN
Samtec Inc.
FTE-109-01-G-DV
Samtec Inc.
FTMH-115-02-F-DV-ES-A-P-TR
Mill-Max Manufacturing Corp.
800-10-016-62-001000
Preci-Dip
350-80-112-00-013101
Samtec Inc.

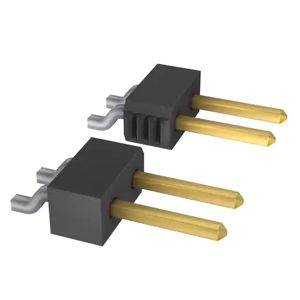

TSM-114-01-L-SH-P-TR
Samtec Inc.

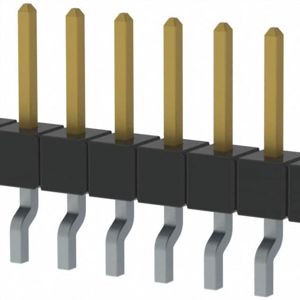

MMT-112-02-L-SH
Samtec Inc.

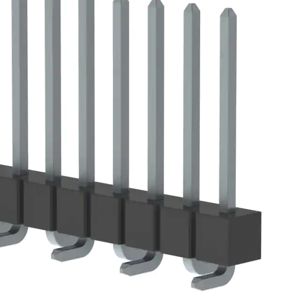

TSM-150-03-T-SV
