0533985007
Molex
Molex
HDR VERT 7 CIRC 1.25 SMD AU
$0.70
Available to order
Reference Price (USD)
1+
$0.70310
500+
$0.696069
1000+
$0.689038
1500+
$0.682007
2000+
$0.674976
2500+
$0.667945
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0533985007 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0533985007 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.185" (4.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 125VAC/DC
Related Products
Samtec Inc.
TMM-112-06-S-S
Samtec Inc.
ZSS-125-07-G-D-1140
Amphenol ICC (FCI)
68016-106HTLF
Preci-Dip

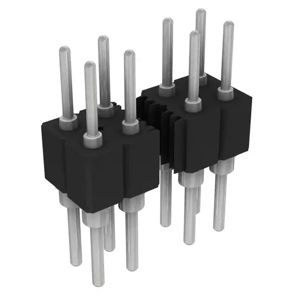

451-10-250-00-003101
Harwin Inc.

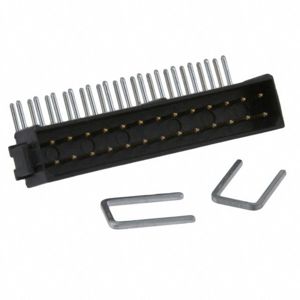

M80-8412642
Samtec Inc.

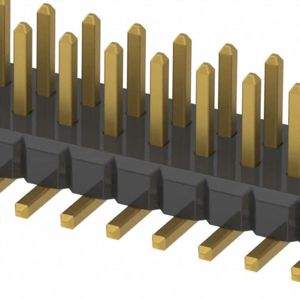

FTM-125-02-G-DV-P-TR
Amphenol ICC (FCI)

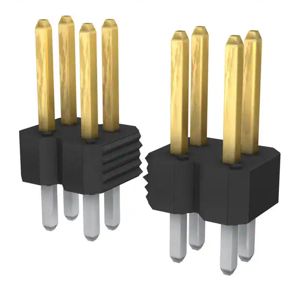

77313-818-60LF
