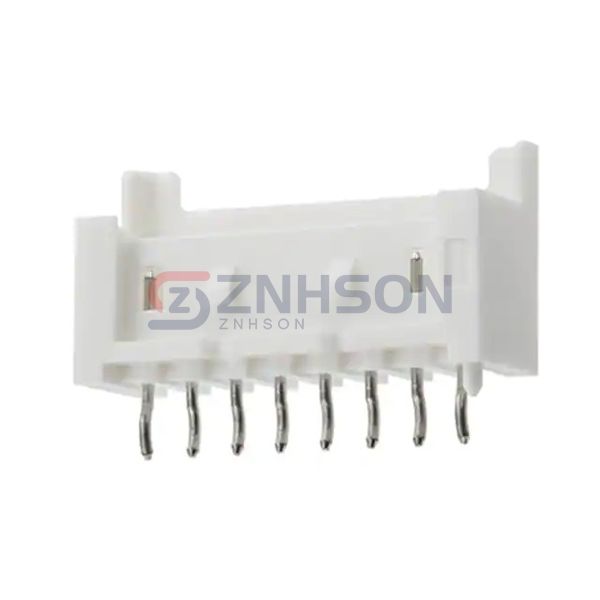

0534760810
Molex
Molex
MINILOCK 2.5 STR GW NAT 8CKT
$1.09
Available to order
Reference Price (USD)
1+
$1.09000
500+
$1.0791
1000+
$1.0682
1500+
$1.0573
2000+
$1.0464
2500+
$1.0355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 0534760810 rectangular connector header from Molex. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 0534760810 meets the highest industry standards. Molex provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.453" (11.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC/DC
Related Products
Samtec Inc.
TSW-102-15-L-D
Molex
55917-1612
Samtec Inc.
TFM-106-01-L-S-RA
TE Connectivity AMP Connectors
2041321-3
Samtec Inc.
FTSH-122-04-L-DV
Samtec Inc.
TMM-108-04-L-D-SM-A-P-TR
Molex

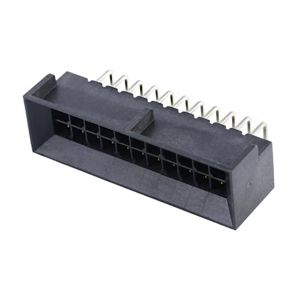

0444282201
Samtec Inc.

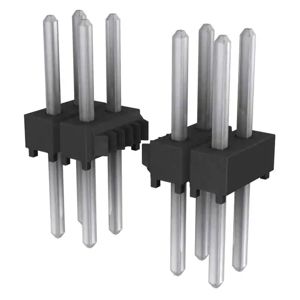

TSW-130-26-T-D
Samtec Inc.

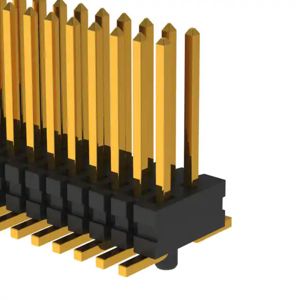

FTE-109-03-G-DV-A-P-TR
