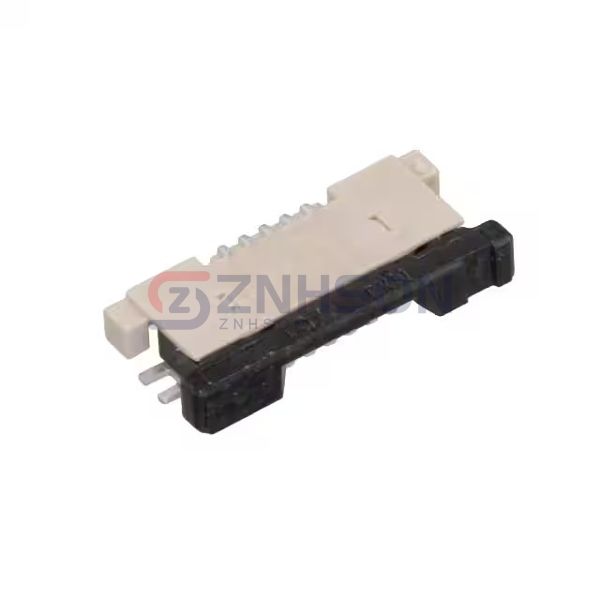

0545480533
Molex
Molex
CONN FFC BOTTOM 5POS 0.5MM R/A
$1.04
Available to order
Reference Price (USD)
3,000+
$0.45081
6,000+
$0.43526
9,000+
$0.41350
15,000+
$0.40417
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 0545480533 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 0545480533 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 0545480533 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 5
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.047" (1.20mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Tin Bismuth
- Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -20°C ~ 85°C
- Material Flammability Rating: UL94 V-0
