0545501471
Molex
Molex

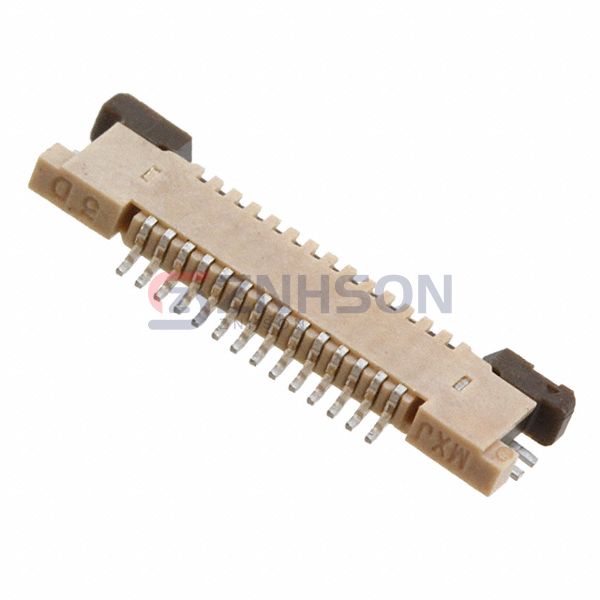

CONN FFC TOP 14POS 0.50MM R/A
$1.94
Available to order
Reference Price (USD)
3,000+
$1.09462
6,000+
$1.04674
9,000+
$1.02621
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the 0545501471 FFC/FPC Connectors from Molex, where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The 0545501471 series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Molex's eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for 0545501471 when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Obsolete
- Flat Flex Type: FFC, FPC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Top
- Number of Positions: 14
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.047" (1.20mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight, Tapered
- Contact Material: Phosphor Bronze
- Contact Finish: Gold
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: 50V
- Operating Temperature: -20°C ~ 85°C
- Material Flammability Rating: UL94 V-0
