0554870419
Molex
Molex

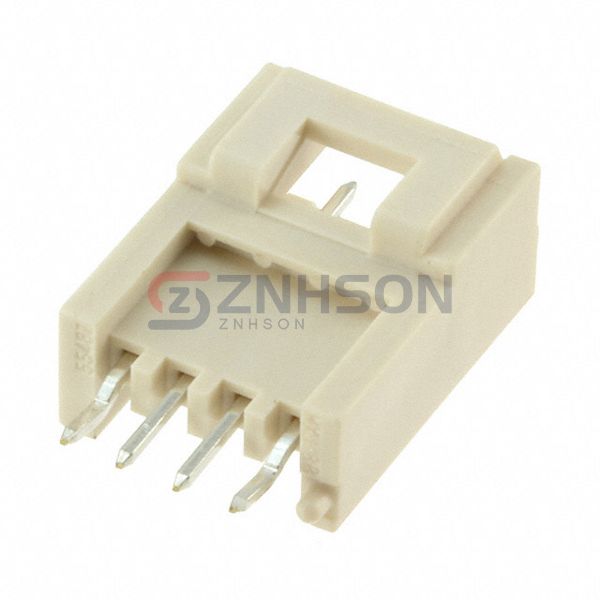

CONN HEADER VERT 4POS 2MM
$0.60
Available to order
Reference Price (USD)
1+
$0.47000
10+
$0.44500
100+
$0.34090
500+
$0.29640
1,200+
$0.24453
6,000+
$0.21489
10,800+
$0.20007
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0554870419 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.144" (3.66mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.604" (15.35mm)
- Insulation Height: 0.520" (13.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: -
