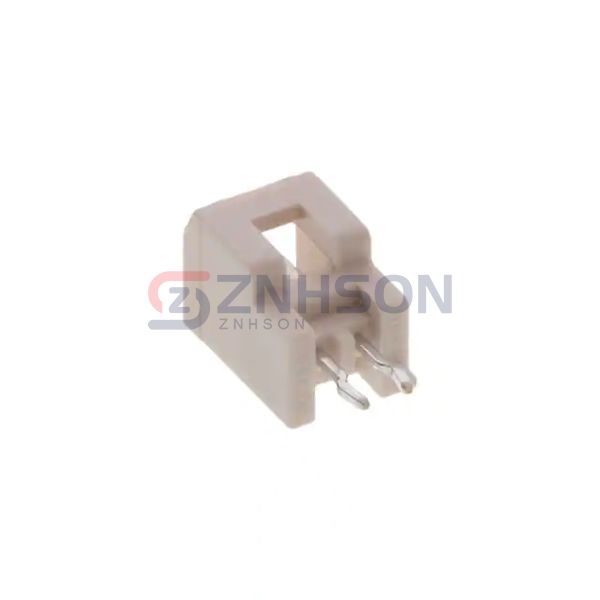

0557550219
Molex
Molex
CONN HEADER VERT 2POS 2MM
$0.50
Available to order
Reference Price (USD)
1+
$0.44000
10+
$0.42000
100+
$0.29400
500+
$0.25200
1,200+
$0.21000
6,000+
$0.18000
10,800+
$0.16800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0557550219 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.144" (3.66mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.437" (11.10mm)
- Insulation Height: 0.352" (8.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
