0559172810
Molex
Molex
CONN HEADER VERT 28POS 2MM
$1.56
Available to order
Reference Price (USD)
1+
$1.26000
10+
$1.11000
400+
$0.87058
800+
$0.76176
1,200+
$0.69647
5,200+
$0.60941
10,000+
$0.57894
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

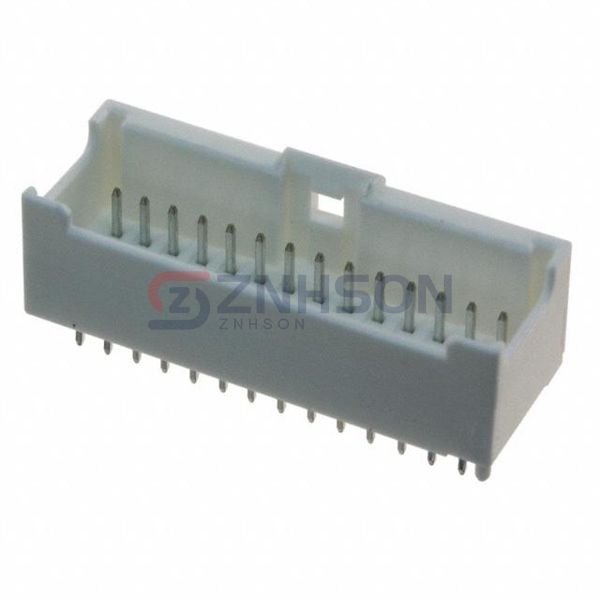

The 0559172810 male pin header by Molex provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Molex guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 28
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.366" (9.30mm)
- Insulation Height: 0.384" (9.75mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
