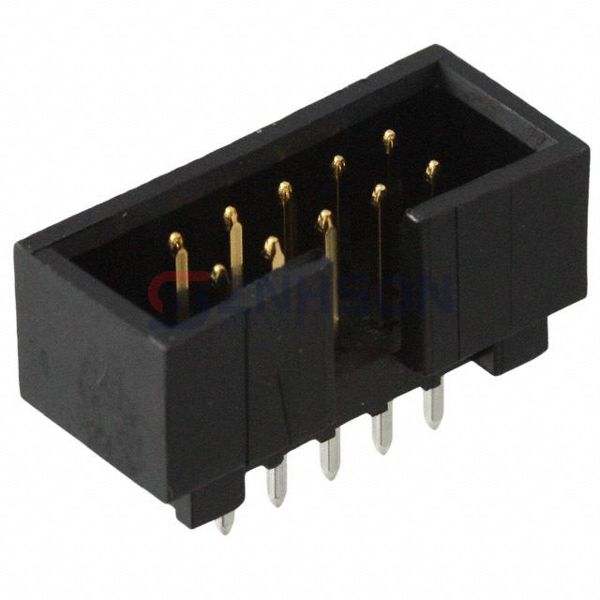

0702461001
Molex
Molex
CONN HEADER VERT 10POS 2.54MM
$2.16
Available to order
Reference Price (USD)
1+
$1.70000
10+
$1.53900
100+
$1.31920
500+
$1.09936
1,000+
$0.94230
5,000+
$0.83551
10,000+
$0.81666
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 0702461001 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.500" (12.70mm)
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
