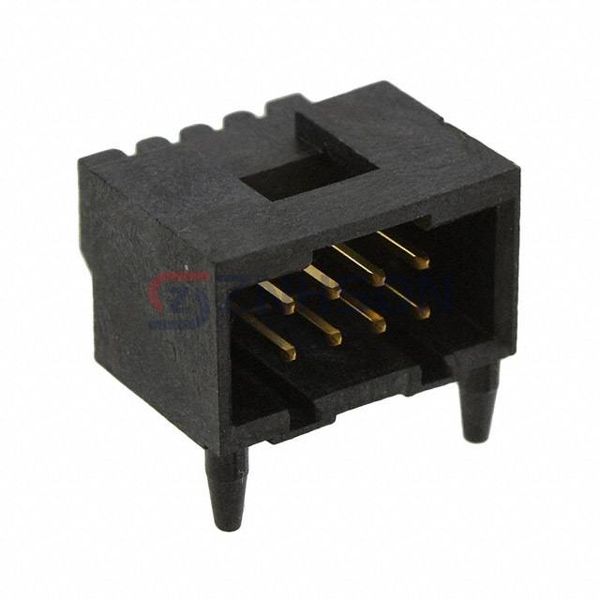

0741640008
Molex
Molex
CONN HEADER R/A 8POS 2.54MM
$3.51
Available to order
Reference Price (USD)
1+
$2.76000
10+
$2.64700
100+
$2.20560
810+
$1.70935
1,620+
$1.54392
5,670+
$1.43364
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0741640008 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0741640008 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Receptacle
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.315" (8.00mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.420" (10.67mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TMM-104-02-G-D
JST Sales America Inc.
BM20B-SRDS-A-G-TF(LF)(SN)
Samtec Inc.
FTSH-123-01-L-DH-A
Samtec Inc.
FTSH-113-02-L-DV-A-P-TR
Assmann WSW Components
AWH 20G-0202-T
Sullins Connector Solutions
PEC34SABN
Samtec Inc.
HTSW-133-08-G-S
Samtec Inc.
TSW-105-06-L-S
Samtec Inc.

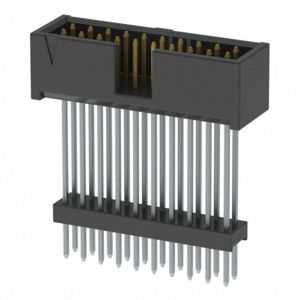

ZSS-110-07-L-D-1090
