0877592650
Molex
Molex
CONN HEADER SMD 26POS 2MM
$4.15
Available to order
Reference Price (USD)
1+
$4.15000
500+
$4.1085
1000+
$4.067
1500+
$4.0255
2000+
$3.984
2500+
$3.9425
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

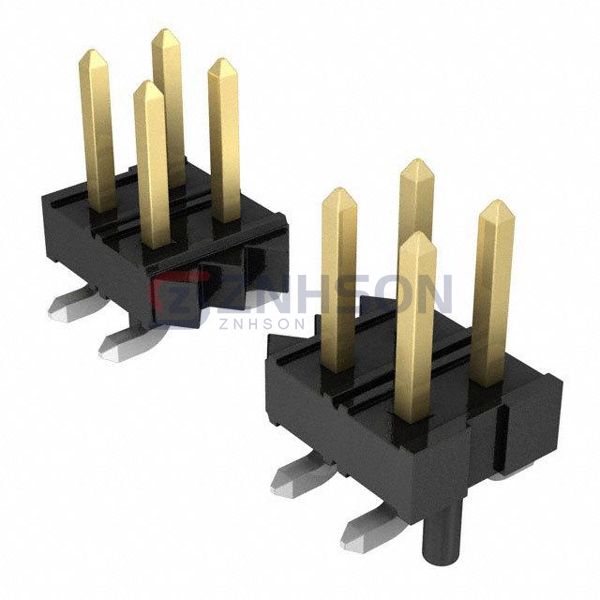

Discover the 0877592650 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0877592650 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.150" (3.81mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
