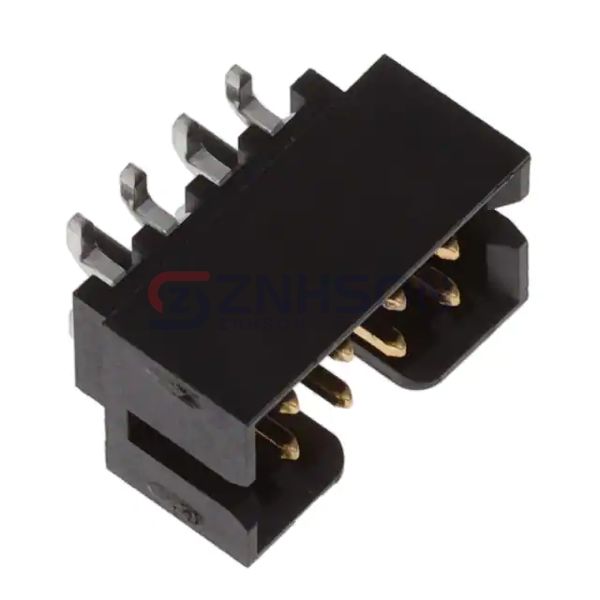

0878325323
Molex
Molex
2MM MGRID SHRD HDRCAPPG SMT76AUL
$1.91
Available to order
Reference Price (USD)
1+
$1.91000
500+
$1.8909
1000+
$1.8718
1500+
$1.8527
2000+
$1.8336
2500+
$1.8145
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0878325323 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0878325323 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.00µin (0.076µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide, Keying Slot
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 125V
Related Products
TE Connectivity Erni
109915
Samtec Inc.
TMMH-105-05-S-D
Samtec Inc.
FTSH-104-03-L-D-RA
Samtec Inc.

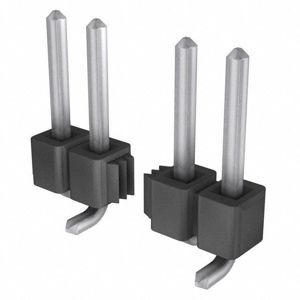

TSM-135-01-T-SV
Samtec Inc.

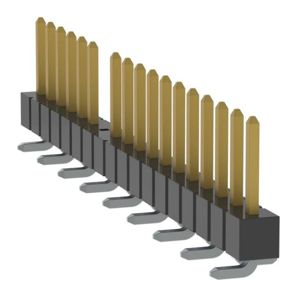

TSM-118-01-S-SV-012
Samtec Inc.
TMM-108-01-G-D-SM-A-TR
Samtec Inc.

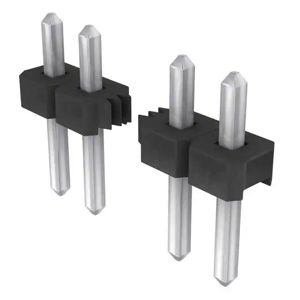

TLW-119-05-T-S
Samtec Inc.

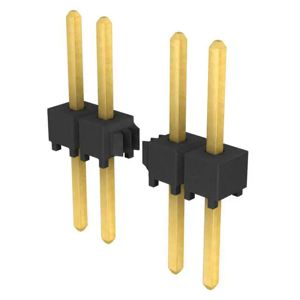

TSW-123-26-G-S
Molex

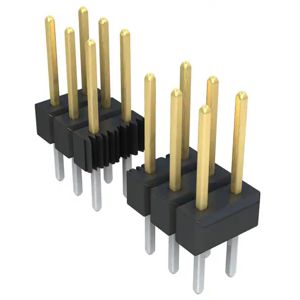

0010897282
