0878326422
Molex
Molex
CONN HEADER SMD 30POS 2MM
$3.13
Available to order
Reference Price (USD)
1+
$3.13000
500+
$3.0987
1000+
$3.0674
1500+
$3.0361
2000+
$3.0048
2500+
$2.9735
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

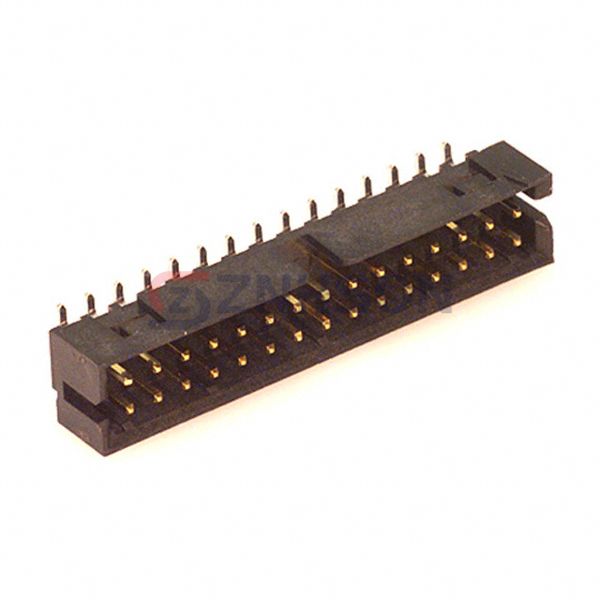

The 0878326422 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0878326422 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 30
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide, Keying Slot, Pick and Place
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
3-644613-5
Samtec Inc.
TSM-104-03-G-DV
Amphenol ICC (FCI)
54101-T10-36
Samtec Inc.
EJH-113-01-FM-D-TH

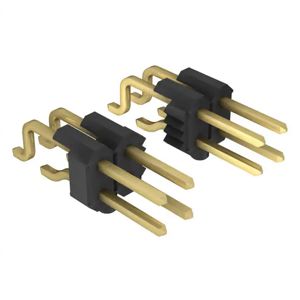

Würth Elektronik
610110249121
TE Connectivity AMP Connectors

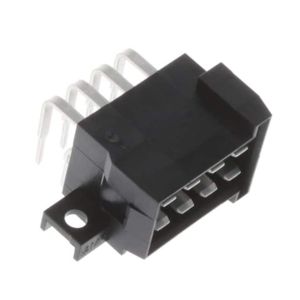

828801-3
Samtec Inc.

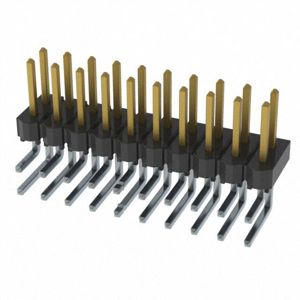

HTSW-110-08-LM-D-LA
Samtec Inc.

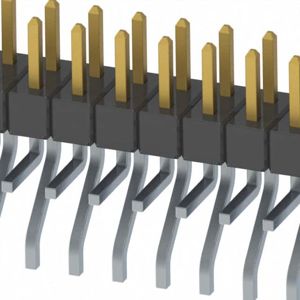

MMT-136-01-F-MT-K

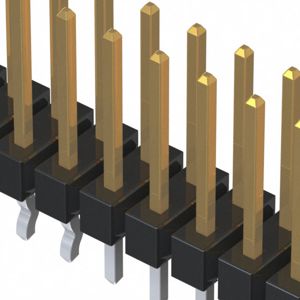

Molex
