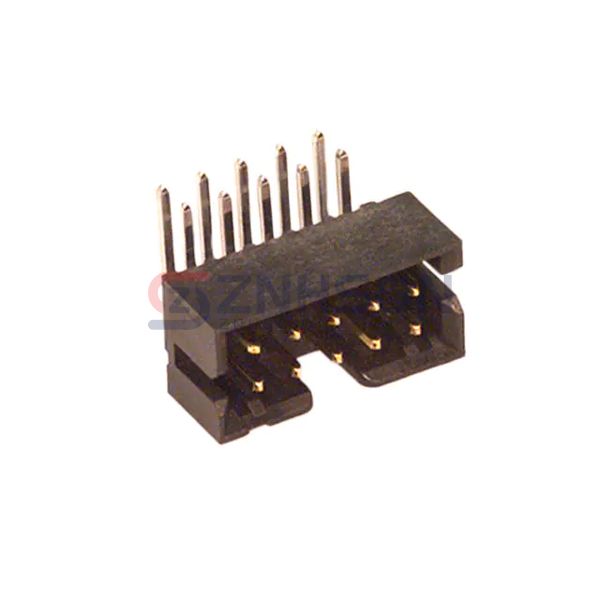

0878331020
Molex
Molex
CONN HEADER R/A 10POS 2MM
$1.83
Available to order
Reference Price (USD)
1+
$1.22000
10+
$1.07200
100+
$0.92440
500+
$0.75636
3,360+
$0.60929
6,720+
$0.58828
10,080+
$0.55887
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 0878331020 rectangular connector header from Molex for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Molex is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.085" (2.16mm)
- Overall Contact Length: -
- Insulation Height: 0.248" (6.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-126-02-L-SH-A
Hirose Electric Co Ltd
DF3E-4P-2H(54)
HARTING
15150326601000
Mill-Max Manufacturing Corp.
350-10-138-00-006000
Sullins Connector Solutions
PRPC025SBCN-M71RC
Amphenol Sine Systems Corp
AT04-12PD-BM04
Molex
0430452415

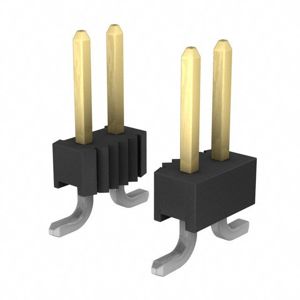

TE Connectivity AMP Connectors
6-146806-3

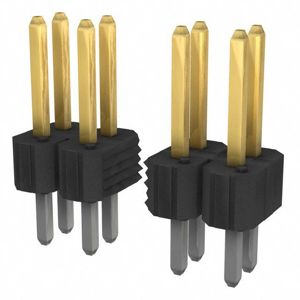

Amphenol ICC (FCI)
