0878341611
Molex
Molex

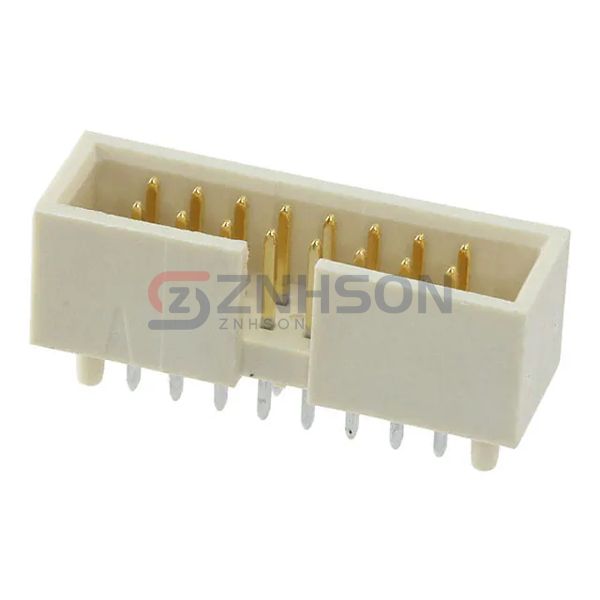

CONN HEADER VERT 16POS 2.54MM
$2.89
Available to order
Reference Price (USD)
1+
$2.45000
10+
$2.22800
100+
$1.90930
500+
$1.59110
1,000+
$1.36380
5,000+
$1.20924
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 0878341611 rectangular connector header from Molex. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 0878341611 is perfect for automotive, industrial, and consumer electronics. Molex ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: 0.490" (12.45mm)
- Insulation Height: 0.365" (9.27mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.11µin (0.130µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Board Guide, Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): -
- Voltage Rating: -
