0878981224
Molex
Molex
CONN HEADER SMD 12POS 2.54MM
$2.25
Available to order
Reference Price (USD)
1+
$2.24818
500+
$2.2256982
1000+
$2.2032164
1500+
$2.1807346
2000+
$2.1582528
2500+
$2.135771
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

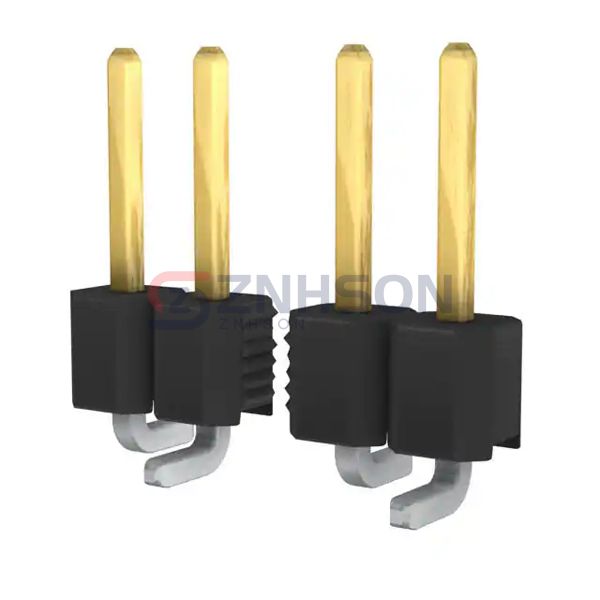

The 0878981224 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-111-01-F-DV-P-TR
Preci-Dip
890-80-009-20-002101
Preci-Dip
890-70-033-10-004101
Molex
0423754000
Mill-Max Manufacturing Corp.
850-90-009-20-001000
Molex
0713081194
Samtec Inc.

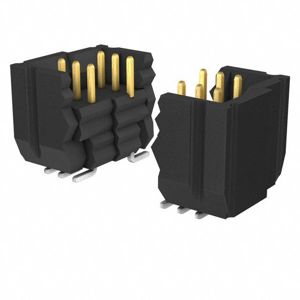

BKT-169-04-L-V-S-P-TR
Samtec Inc.

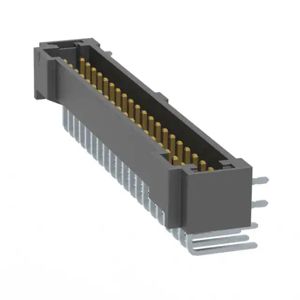

T2M-120-01-L-D-RA-WT
