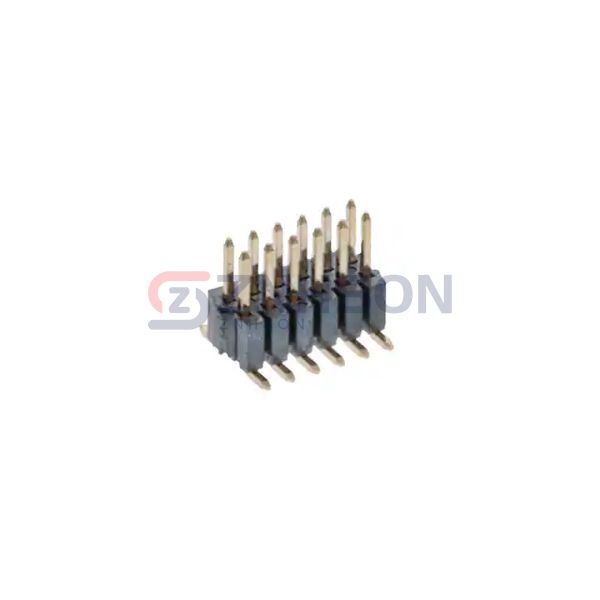

0879331219
Molex
Molex
CONN HEADER SMD 12POS 1.27MM
$1.27
Available to order
Reference Price (USD)
1+
$1.93000
71+
$1.57296
142+
$1.50148
568+
$1.25125
1,065+
$1.07250
5,041+
$0.95095
10,011+
$0.92950
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0879331219 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.099" (2.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 2.00µin (0.051µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Pick and Place
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 4.3A
- Voltage Rating: 125V
