09-9070-1-03
Concord Electronics
Concord Electronics
PC JACK - NON-INSULATED
$4.13
Available to order
Reference Price (USD)
1+
$4.13000
500+
$4.0887
1000+
$4.0474
1500+
$4.0061
2000+
$3.9648
2500+
$3.9235
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 09-9070-1-03 PC Pin Receptacle by Concord Electronics. This high-performance terminal ensures secure and efficient connections in a variety of settings. Whether you're designing military equipment, medical devices, or IoT gadgets, 09-9070-1-03 provides the reliability you need. Concord Electronics prides itself on delivering components that meet the most stringent requirements, making 09-9070-1-03 a smart choice for any project.
Specifications
- Product Status: Discontinued at Digi-Key
- Tail Type: No Tail
- Termination: Swage
- Length - Overall: 0.530" (13.46mm)
- Accepts Pin Diameter: 0.060" ~ 0.062" (1.52mm ~ 1.57mm)
- Accepts Square Pin Size: -
- Pin Hole Diameter: -
- Mounting Hole Diameter: -
- Flange Diameter: 0.141" (3.58mm)
- Tail Diameter: -
- Socket Depth: 0.190" (4.83mm)
- Contact Material: Beryllium Copper
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
Related Products
TE Connectivity AMP Connectors
2-331677-9
Preci-Dip

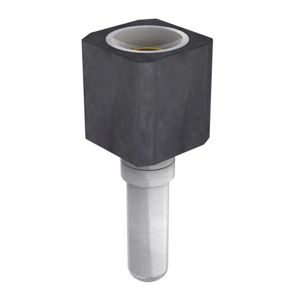

714-87-114-31-012101
Mill-Max Manufacturing Corp.

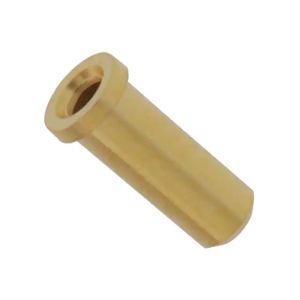

0294-0-15-15-06-27-10-0
