0901220777

Molex

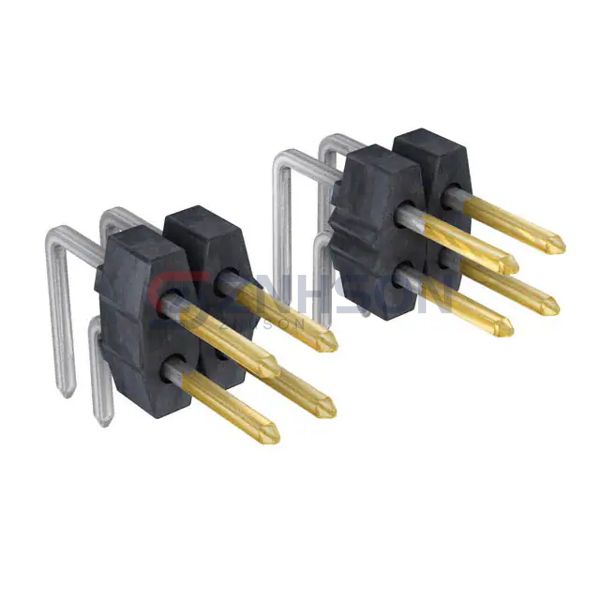

0901220777 Preview
Molex
CONN HEADER R/A 34POS 2.54MM
$4.49
Available to order
Reference Price (USD)
1+
$4.49338
500+
$4.4484462
1000+
$4.4035124
1500+
$4.3585786
2000+
$4.3136448
2500+
$4.268711
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 34
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.266" (6.75mm)
  • Contact Length - Post: 0.114" (2.90mm)
  • Overall Contact Length: -
  • Insulation Height: 0.242" (6.14mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 15.0µin (0.38µm)
  • Contact Finish - Post: Tin
  • Contact Material: Brass
  • Insulation Material: Polyester, Glass Filled
  • Features: -
  • Operating Temperature: -
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): -
  • Voltage Rating: -
