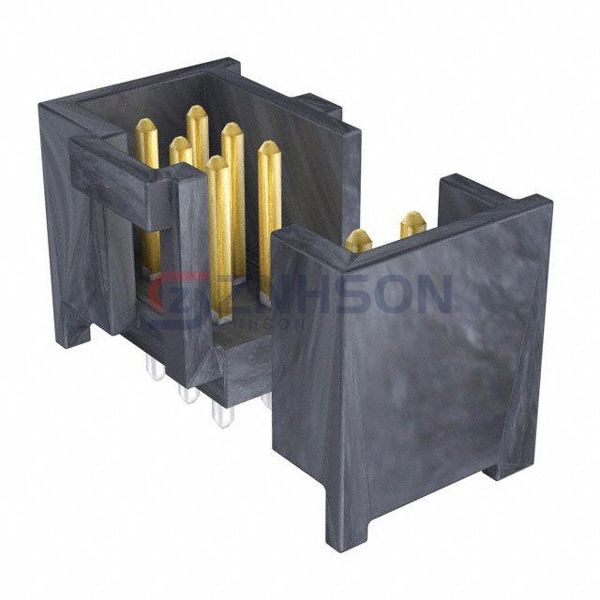

0901301318
Molex
Molex
CONN HEADER VERT 18POS 2.54MM
$1.99
Available to order
Reference Price (USD)
1+
$1.99315
500+
$1.9732185
1000+
$1.953287
1500+
$1.9333555
2000+
$1.913424
2500+
$1.8934925
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901301318 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0901301318 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.429" (10.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
852-80-046-30-001101
Samtec Inc.
FTE-135-03-G-DH
JST Sales America Inc.
SM11B-ZESS-TB(LF)(SN)
Samtec Inc.
HTSW-105-21-T-S
Preci-Dip
450-80-212-00-106101
Würth Elektronik

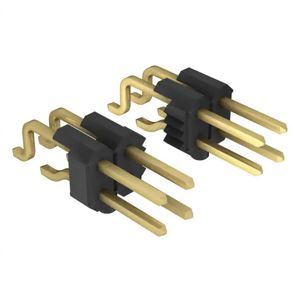

610114249121
Samtec Inc.

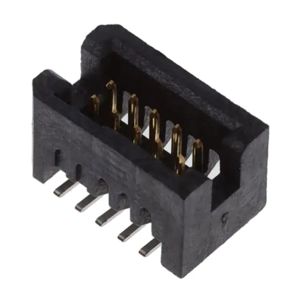

TFC-105-22-L-D-K
HARTING

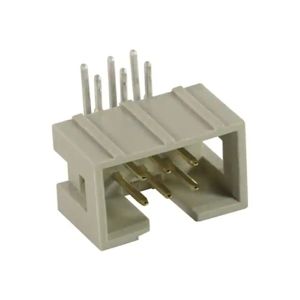

09185147321
