0901311085
Molex
Molex
CONN HEADER VERT 10POS 2.54MM
$1.45
Available to order
Reference Price (USD)
1+
$1.14000
10+
$1.00000
100+
$0.86280
500+
$0.70596
1,800+
$0.58830
5,400+
$0.54908
10,800+
$0.52163
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0901311085 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.478" (12.15mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 2.00µin (0.051µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
111782-8
Amphenol ICC (FCI)
77313-822-64LF
TE Connectivity AMP Connectors
5164713-8
Samtec Inc.
TMM-142-01-L-D-RA
Samtec Inc.
TMM-104-01-T-D-RA
METZ CONNECT USA Inc.
PR20204HBNN
Samtec Inc.
TMM-106-06-T-D-SM-P
Molex
0559351030

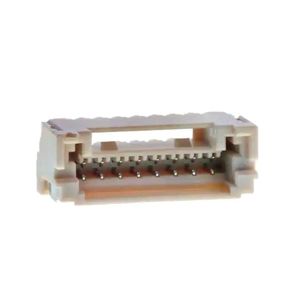

JST Sales America Inc.
