0901361112
Molex
Molex
CONN HEADER VERT 12POS 2.54MM
$1.05
Available to order
Reference Price (USD)
1+
$1.05000
500+
$1.0395
1000+
$1.029
1500+
$1.0185
2000+
$1.008
2500+
$0.9975
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 0901361112 rectangular connector header from Molex, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 0901361112 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Molex guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.266" (6.75mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.510" (12.95mm)
- Insulation Height: 0.429" (10.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Preci-Dip
892-70-046-10-004101
Samtec Inc.
FTS-108-04-L-DV-P
Amphenol ICC (FCI)
68016-219HLF
Amphenol ICC (FCI)
20021121-10020C4LF
Preci-Dip
350-10-154-00-018101
Samtec Inc.
FTSH-110-04-S-DV
Sullins Connector Solutions

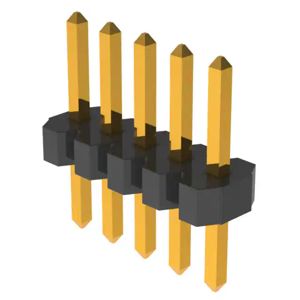

GRPB051VWVN-RC
Preci-Dip

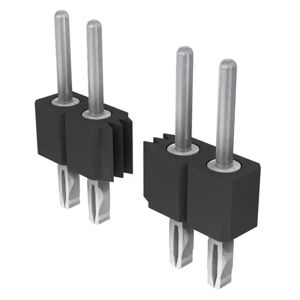

800-80-042-65-001101
