0903253004
Molex
Molex
CONN HEADER VERT 4POS 1.27MM
$0.60
Available to order
Reference Price (USD)
1+
$0.52000
10+
$0.48600
100+
$0.37240
500+
$0.32380
1,000+
$0.26714
5,000+
$0.23476
10,000+
$0.21857
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

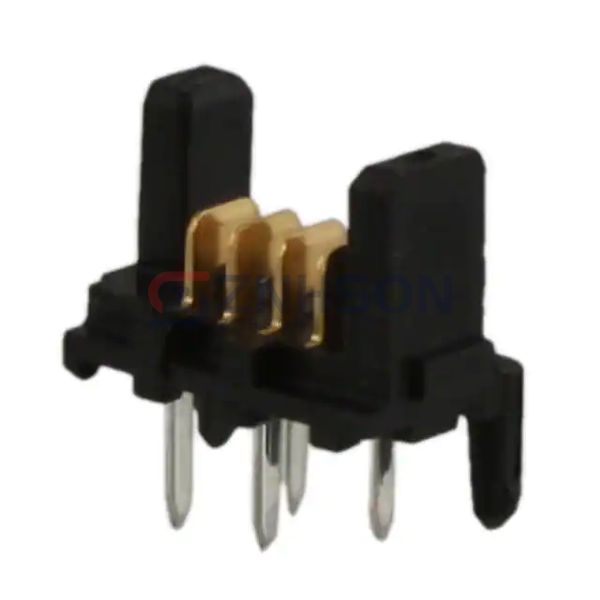

The 0903253004 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Palladium-Nickel
- Contact Finish Thickness - Mating: 24.0µin (0.61µm)
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
