0907790004
Molex
Molex
CONN HEADER VERT 10POS 1.27MM
$0.77
Available to order
Reference Price (USD)
1+
$0.67000
10+
$0.62400
100+
$0.47860
500+
$0.41620
1,000+
$0.34337
5,000+
$0.30175
10,000+
$0.28094
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0907790004 male pin header by Molex offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Molex for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: -
- Insulation Height: 0.252" (6.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 157.5µin (4.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
- Features: Board Lock
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
Related Products
Harwin Inc.
M22-2010305
Amphenol ICC (FCI)
76383-316LF
TE Connectivity AMP Connectors
2-146134-1
Molex
0702871014
Samtec Inc.
TSM-108-01-S-SV-A-P-TR
Samtec Inc.

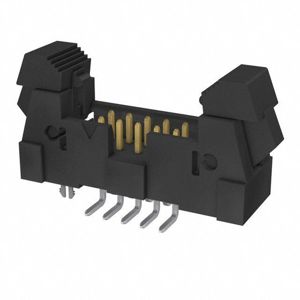

EHT-105-01-F-D-SM-SR-LC
Samtec Inc.

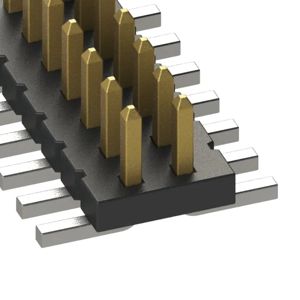

FTS-118-02-F-DV-P-TR
Sullins Connector Solutions

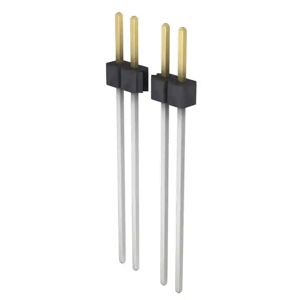

PBC05SAGN
