09185106914
HARTING
HARTING

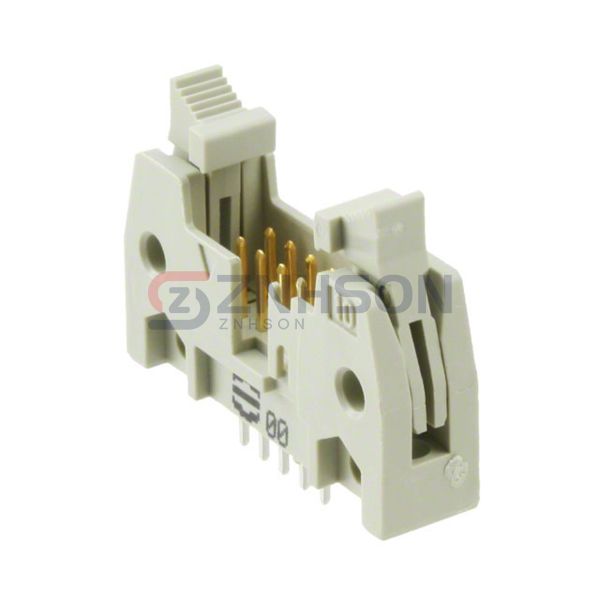

CONN HEADER VERT 10POS 2.54MM
$2.64
Available to order
Reference Price (USD)
1+
$2.16000
10+
$1.96000
25+
$1.84000
50+
$1.76000
100+
$1.68000
250+
$1.52000
500+
$1.40000
1,000+
$1.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 09185106914 by HARTING is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. HARTING delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
