09185646924
HARTING
HARTING
CONN HEADER VERT 64POS 2.54MM
$6.48
Available to order
Reference Price (USD)
1+
$5.85000
10+
$5.61600
25+
$5.14800
50+
$4.91400
100+
$4.68000
250+
$4.09500
500+
$3.97800
1,000+
$3.39300
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

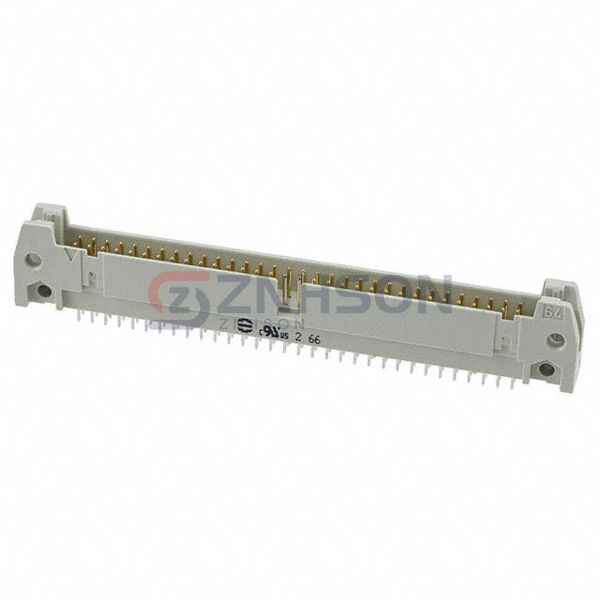

The 09185646924 by HARTING is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 09185646924 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. HARTING ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 64
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.650" (16.51mm)
- Insulation Height: 0.681" (17.30mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
