09195206324

HARTING

Manufacturer

HARTING

Description:

CONN HEADER VERT 20POS 2.54MM

Datasheet:

09195206324 Datasheet

$3.23

Available to order

Reference Price (USD)

$2.83000

10+

$2.71200

25+

$2.48600

50+

$2.37300

100+

$2.26000

250+

$1.97752

500+

$1.92100

1,000+

$1.63850

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

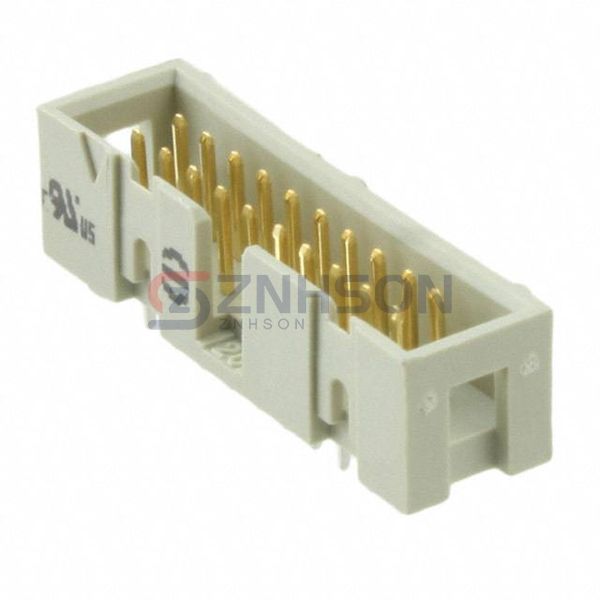

The 09195206324 by HARTING is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 09195206324 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. HARTING ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Holder
Contact Length - Mating: 0.240" (6.10mm)
Contact Length - Post: 0.114" (2.90mm)
Overall Contact Length: -
Insulation Height: 0.350" (8.89mm)
Contact Shape: Square
Contact Finish - Mating: -
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Beige
Current Rating (Amps): -
Voltage Rating: -
