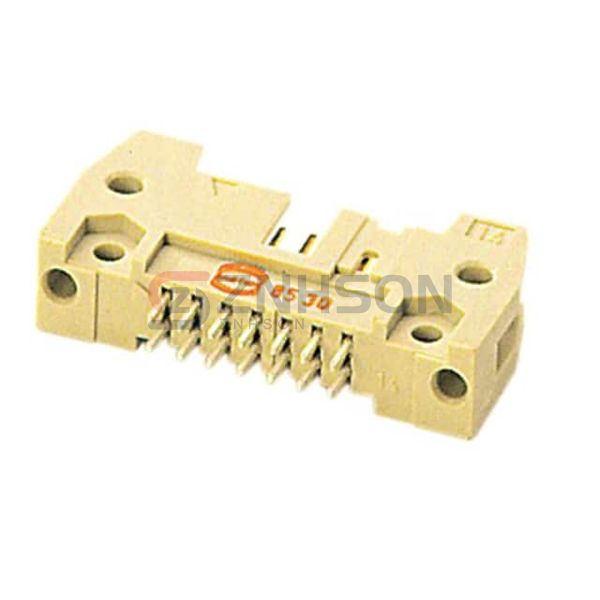

09195206914

HARTING

Manufacturer

HARTING

Description:

CONN HEADER VERT 20POS 2.54MM

Datasheet:

09195206914 Datasheet

$3.65

Available to order

Reference Price (USD)

$3.13000

10+

$3.00000

25+

$2.75000

50+

$2.62500

100+

$2.50000

250+

$2.18752

500+

$2.12500

1,000+

$1.81250

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Upgrade your electronic designs with the 09195206914 rectangular connector header by HARTING. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 09195206914 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust HARTING for connectors that deliver performance and reliability in every application.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Lock/Eject Hooks, Short
Contact Length - Mating: 0.228" (5.80mm)
Contact Length - Post: 0.114" (2.90mm)
Overall Contact Length: 0.650" (16.51mm)
Insulation Height: 0.681" (17.30mm)
Contact Shape: Square
Contact Finish - Mating: -
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: Keying Slot, Mounting Flange
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Beige
Current Rating (Amps): -
Voltage Rating: -
