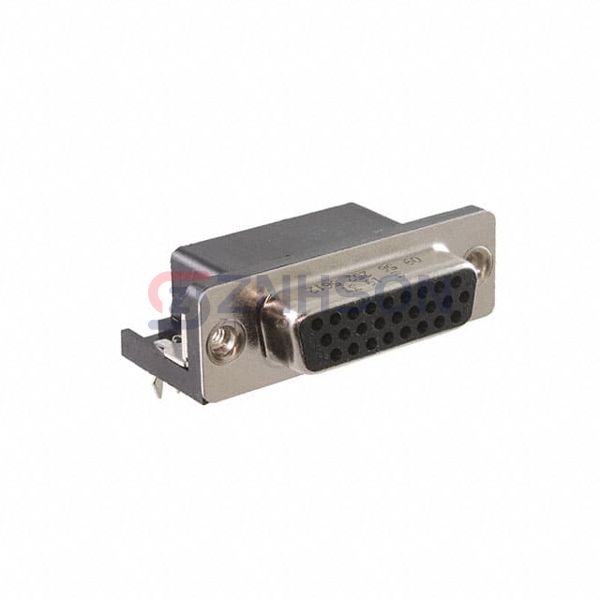

09562525612
HARTING
HARTING
CONN D-SUB HD RCPT 26P R/A SLDR
$8.17
Available to order
Reference Price (USD)
1+
$7.13000
10+
$6.83100
25+
$6.23720
50+
$5.94000
100+
$5.64300
250+
$5.04900
500+
$4.75200
1,000+
$4.15800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for precision, the HARTING 09562525612 D-Sub connector series delivers unmatched performance in the Interconnects market. Featuring nickel-plated shells with keying options to prevent mis-mating, these connectors support data rates up to 1Gbps. The 09562525612 stands out in our catalog with its combination of 75 and 50 impedance variants for RF applications. Primary deployment scenarios include satellite communications gear, radar systems, and military encryption devices. These connectors are also widely specified in automotive diagnostics tools and industrial robotics where vibration-proof connections are essential.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold or Gold-Palladium
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 2A
- Backset Spacing: 0.350" (8.89mm)
- Features: Board Lock
Related Products
EDAC Inc.
637-062-632-043
EDAC Inc.
628-21W1224-7N2
EDAC Inc.
630-8W8-640-1T2
EDAC Inc.
630-24W7240-7NC
EDAC Inc.
634-062-363-551
EDAC Inc.
628-24W7622-5T2
EDAC Inc.
629-21W4250-3N1
EDAC Inc.
622-M50-660-BT4
Assmann WSW Components

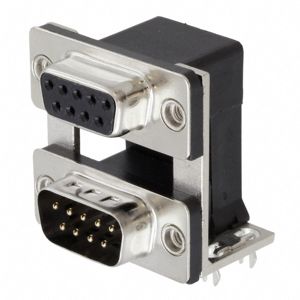

ASUB-277-09TP25
