09562525613
HARTING
HARTING

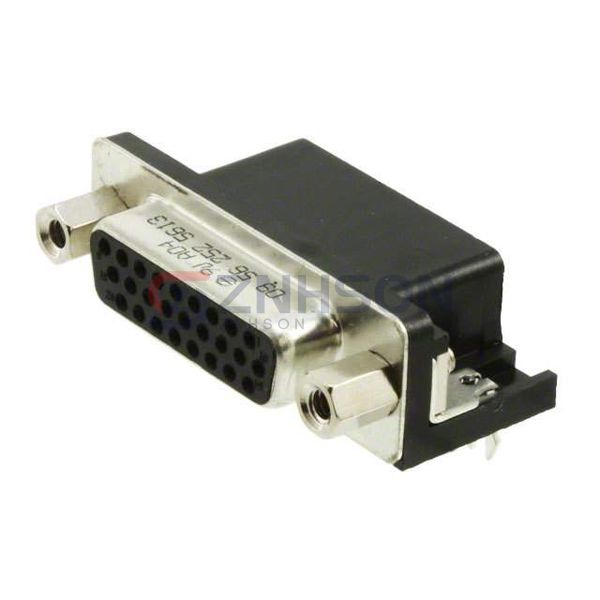

CONN D-SUB HD RCPT 26P R/A SLDR
$8.57
Available to order
Reference Price (USD)
1+
$7.20000
10+
$6.90000
25+
$6.30000
50+
$6.00000
100+
$5.70000
300+
$5.10000
500+
$4.80000
1,000+
$4.20000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 09562525613 D-Sub series by HARTING sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 09562525613 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold or Gold-Palladium
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 2A
- Backset Spacing: 0.350" (8.89mm)
- Features: Board Lock
