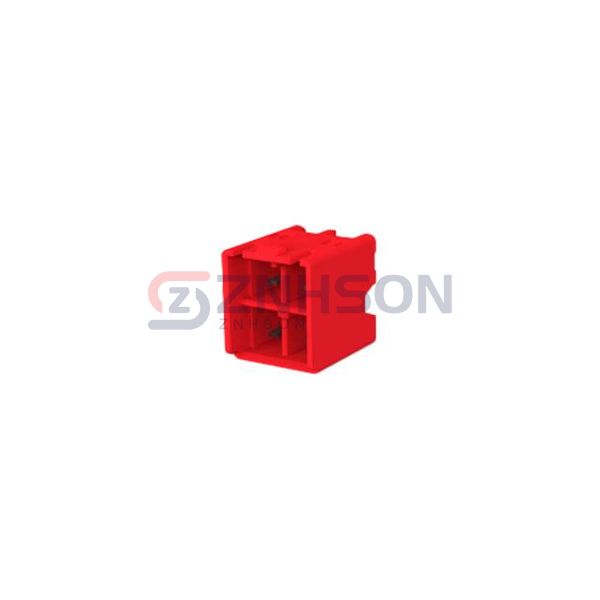

1-1376386-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 4POS 5MM
$1.56
Available to order
Reference Price (USD)
1+
$1.35000
10+
$1.19800
25+
$1.13320
50+
$1.08960
100+
$1.04600
250+
$0.95876
500+
$0.87160
1,000+
$0.78444
2,500+
$0.71907
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1376386-2 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1-1376386-2 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.244" (6.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.555" (14.10mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA66), Nylon 6/6, Glass Filled
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 300VAC
