1-1586044-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

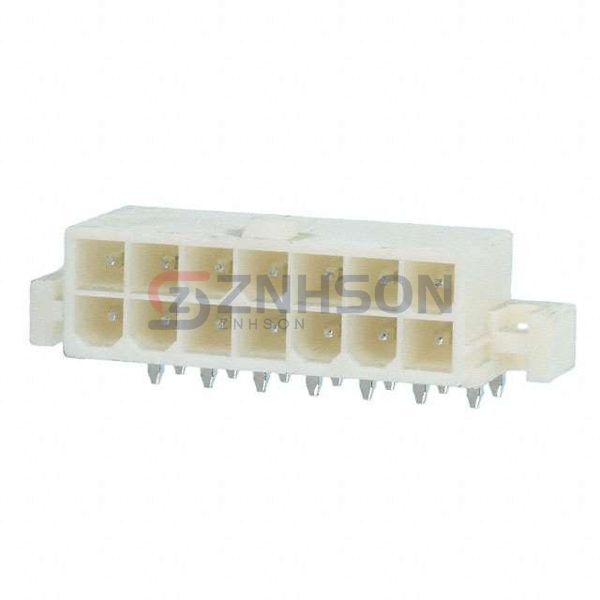

CONN HEADER R/A 14POS 4.2MM
$1.26
Available to order
Reference Price (USD)
900+
$1.11718
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1586044-4 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC
