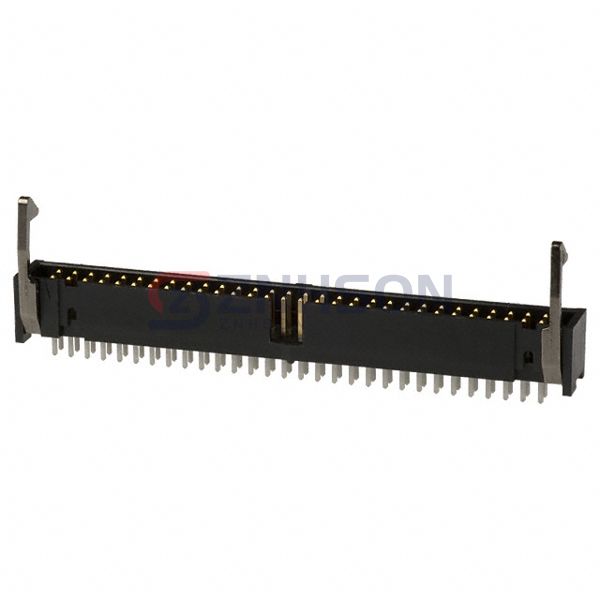

1-1761606-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 60POS 2.54MM
$14.43
Available to order
Reference Price (USD)
1+
$11.83000
12+
$11.34833
102+
$9.69304
504+
$8.27452
1,002+
$7.42343
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1761606-6 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1-1761606-6 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.237" (6.02mm)
- Contact Length - Post: 0.102" (2.60mm)
- Overall Contact Length: -
- Insulation Height: 0.404" (10.26mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
