1-1969730-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

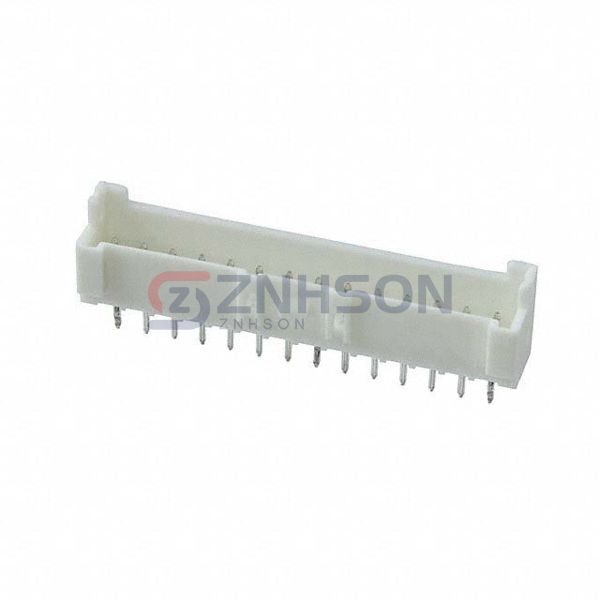

CONN HEADER VERT 14POS 2.5MM
$0.88
Available to order
Reference Price (USD)
1+
$0.80000
10+
$0.74700
100+
$0.58300
500+
$0.51310
1,000+
$0.43148
5,000+
$0.38483
10,000+
$0.36151
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 1-1969730-4 rectangular connector header from TE Connectivity AMP Connectors. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 1-1969730-4 is perfect for automotive, industrial, and consumer electronics. TE Connectivity AMP Connectors ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 14
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: Board Guide
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 4.2A
- Voltage Rating: 250VAC
