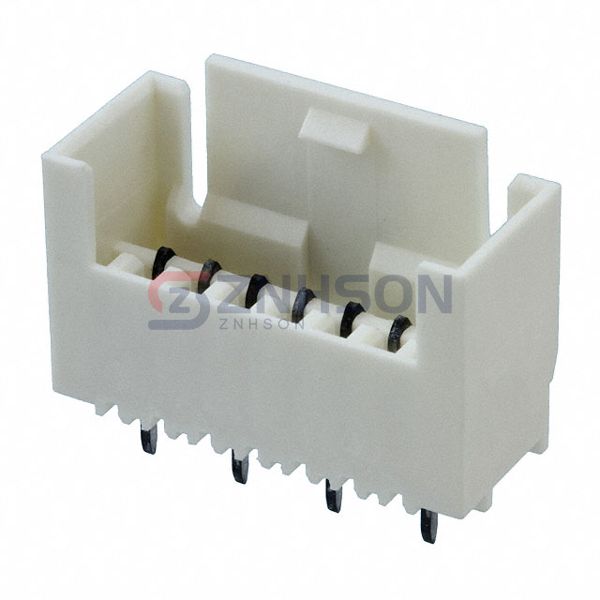

1-1971837-7
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 7POS 2.5MM
$0.76
Available to order
Reference Price (USD)
2,700+
$0.62781
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1-1971837-7 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-1971837-7 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 7
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.610" (15.49mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Silver
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): -
- Voltage Rating: -
