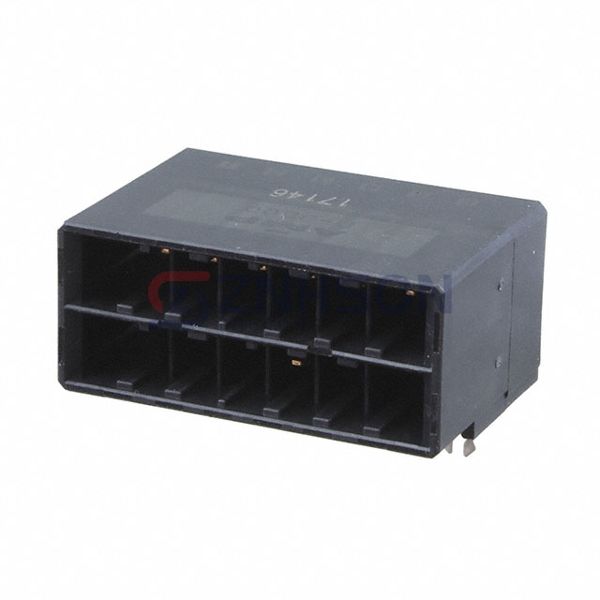

1-2299005-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 12POS 5.08MM
$8.47
Available to order
Reference Price (USD)
1+
$6.74000
12+
$6.46000
108+
$5.33667
504+
$4.49401
1,008+
$3.93226
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-2299005-1 male pin header by TE Connectivity AMP Connectors offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose TE Connectivity AMP Connectors for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.200" (5.08mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.300" (7.62mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: -
- Contact Length - Mating: -
- Contact Length - Post: 0.134" (3.40mm)
- Overall Contact Length: -
- Insulation Height: 0.727" (18.47mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600V
Related Products
Samtec Inc.
FTM-115-02-G-DV-P
Harwin Inc.
G125-MH15005L7P
Samtec Inc.
ZSS-132-07-S-D-1065
Samtec Inc.
ZSS-105-04-S-D-735
Samtec Inc.
FTE-119-01-G-DH
Preci-Dip
350-80-141-00-019101
Samtec Inc.
TSW-132-08-L-S-RA
Molex

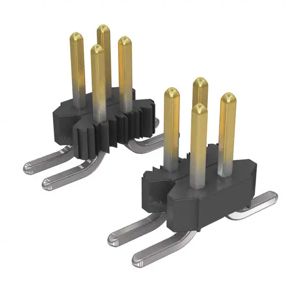

15-91-6189
Samtec Inc.

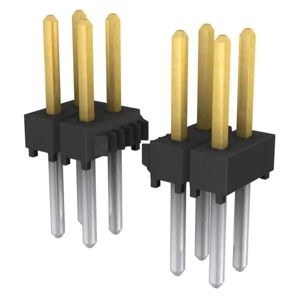

TSW-114-08-S-D
