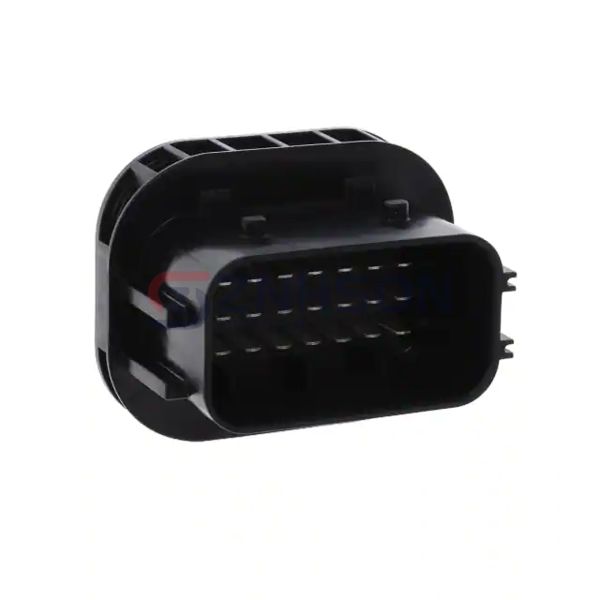

1-2331098-1
TE Connectivity Deutsch Connectors
TE Connectivity Deutsch Connectors
TAB HEADER 21POS.
$27.73
Available to order
Reference Price (USD)
1+
$27.73000
500+
$27.4527
1000+
$27.1754
1500+
$26.8981
2000+
$26.6208
2500+
$26.3435
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-2331098-1 by TE Connectivity Deutsch Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 1-2331098-1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity Deutsch Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 21
- Number of Rows: 3
- Row Spacing - Mating: 0.217" (5.51mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.406" (10.31mm)
- Overall Contact Length: -
- Insulation Height: 1.394" (35.40mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Silver
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Mounting Flange, Sealed
- Operating Temperature: -40°C ~ 120°C
- Ingress Protection: IP68/IP6K9K
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 45A
- Voltage Rating: 60VDC
