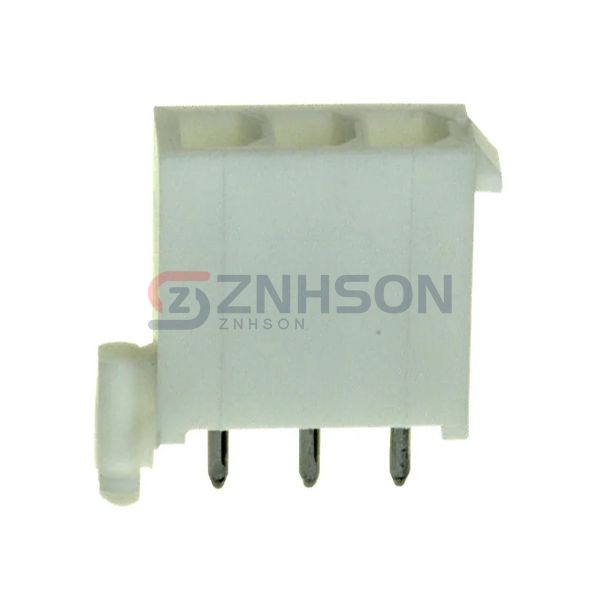

1-770873-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 3POS 4.14MM
$1.44
Available to order
Reference Price (USD)
1+
$1.13000
10+
$0.99400
100+
$0.85720
500+
$0.70132
1,000+
$0.62339
5,000+
$0.54547
10,000+
$0.51820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 1-770873-0 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.163" (4.14mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: -
- Insulation Height: 0.531" (13.50mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -20°C ~ 85°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 600VAC
