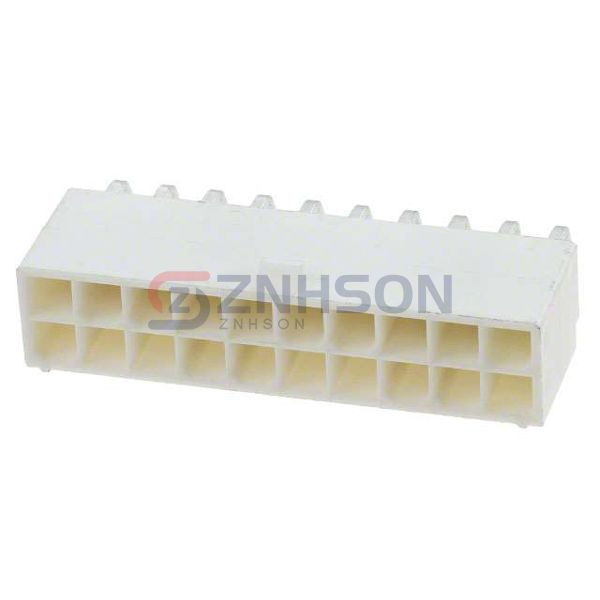

1-794534-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 20POS 4.2MM
$3.43
Available to order
Reference Price (USD)
1+
$3.43000
500+
$3.3957
1000+
$3.3614
1500+
$3.3271
2000+
$3.2928
2500+
$3.2585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-794534-1 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 1-794534-1 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Obsolete
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: -
- Insulation Height: 0.394" (10.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 150.0µin (3.81µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: White
- Current Rating (Amps): -
- Voltage Rating: 600VAC
Related Products
Samtec Inc.
FTE-141-02-G-DH
Sullins Connector Solutions
GRPB241VWTD-RC
Adam Tech
LHB-08-SB1
TE Connectivity AMP Connectors
5-103673-8
Samtec Inc.
TSM-108-02-L-SH-A-P
HARTING

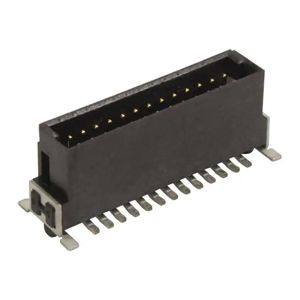

15120206601000
Amphenol ICC (FCI)

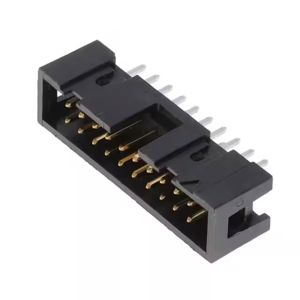

52601-S20-6LF
Molex

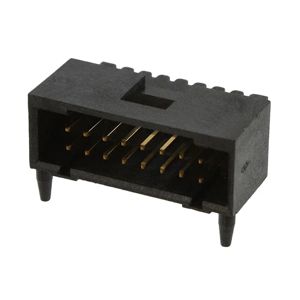

0741640016
