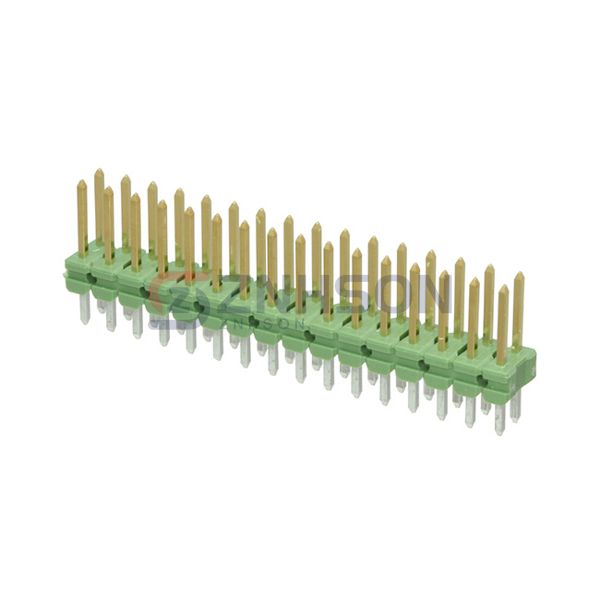

1-825440-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 32POS 2.54MM
$4.57
Available to order
Reference Price (USD)
1+
$4.33000
10+
$4.15700
100+
$3.46430
500+
$2.94468
1,000+
$2.51165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-825440-6 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.264" (6.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.500" (12.70mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.90µin (0.099µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
BBS-118-G-C
Samtec Inc.
TSM-116-01-T-SV-P
Amphenol ICC (FCI)
77315-824-15LF
Sullins Connector Solutions
PBC07DAHN
TE Connectivity AMP Connectors
2-178294-5
Samtec Inc.
EHT-110-01-T-D-RA
Samtec Inc.
ZSS-110-05-T-D-915

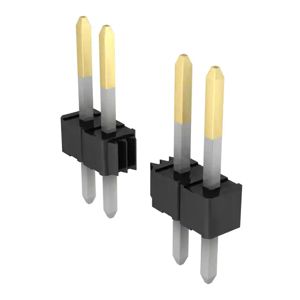

Molex
0022284135
Samtec Inc.

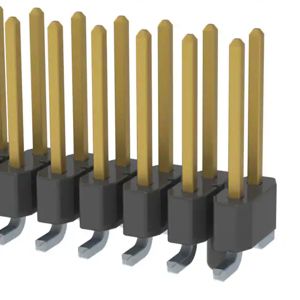

TSM-112-02-L-DV-A-P
