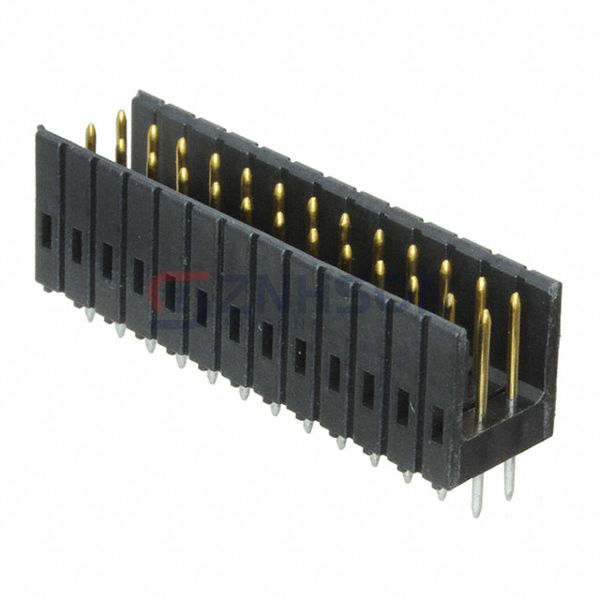

1-826469-3

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER VERT 26POS 2.54MM

Datasheet:

1-826469-3 Datasheet

$9.41

Available to order

Reference Price (USD)

$8.04000

10+

$7.70500

100+

$6.36500

500+

$5.36000

1,000+

$4.69000

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the 1-826469-3 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-826469-3 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 26
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 2 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Latch Holder
Contact Length - Mating: -
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.394" (10.00mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.90µin (0.099µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Features: -
Operating Temperature: -55°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: -
