10056845-120LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER R/A 20POS 2.54MM
$2.00
Available to order
Reference Price (USD)
1+
$1.36000
18+
$1.19944
108+
$1.03491
504+
$0.84673
1,008+
$0.75264
5,004+
$0.65856
10,008+
$0.62563
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

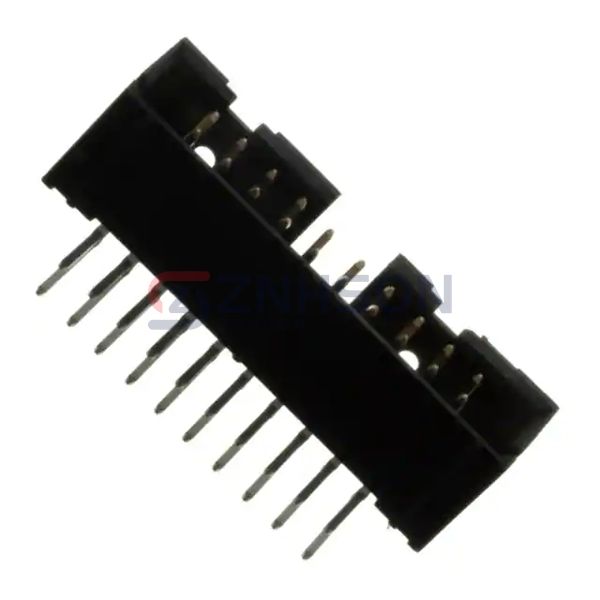

Optimize your interconnections with the 10056845-120LF rectangular connector header from Amphenol ICC (FCI). These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 10056845-120LF is perfect for automotive, industrial, and consumer electronics. Amphenol ICC (FCI) ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.079" (2.00mm)
- Overall Contact Length: -
- Insulation Height: 0.362" (9.20mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
