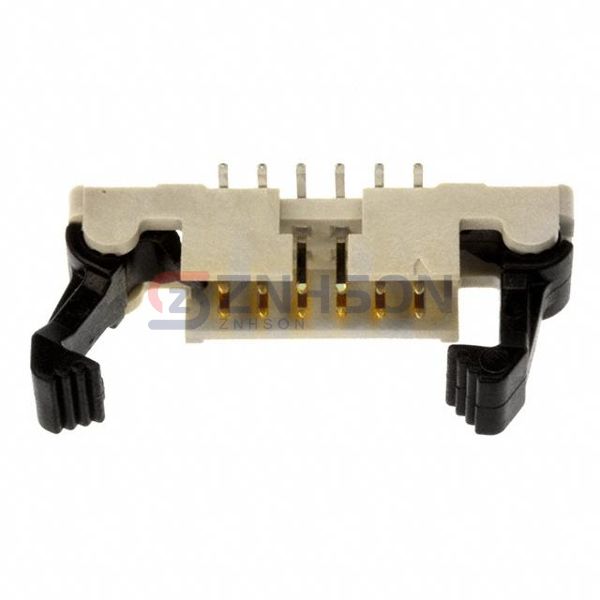

10078995-G02-12ULF

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.079" (2.00mm)
• Number of Positions: 12
• Number of Rows: 2
• Row Spacing - Mating: 0.079" (2.00mm)
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Latch Lock/Eject Hooks
• Contact Length - Mating: 0.157" (4.00mm)
• Contact Length - Post: -
• Overall Contact Length: -
• Insulation Height: 0.244" (6.20mm)
• Contact Shape: Square
• Contact Finish - Mating: Gold, GXT™
• Contact Finish Thickness - Mating: 30.0µin (0.76µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic
• Features: Keying Slot
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Cream
• Current Rating (Amps): 2A (AC/DC)
• Voltage Rating: 200V (AC/DC)
