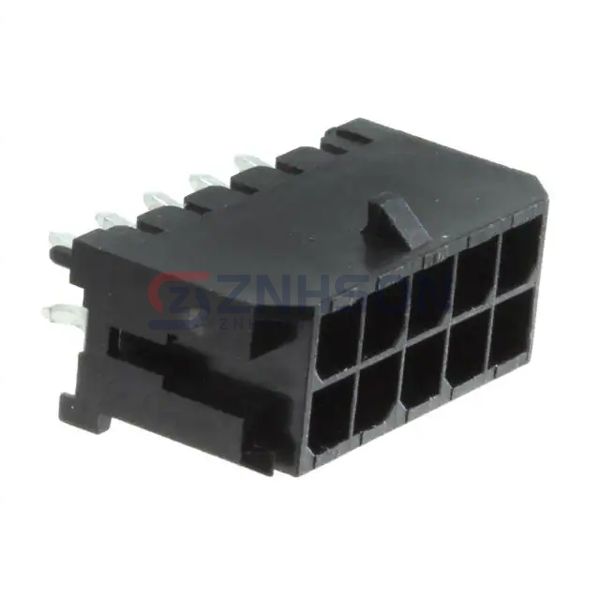

10132450-1021GLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 10POS 3MM
$0.91
Available to order
Reference Price (USD)
1+
$0.66000
10+
$0.62300
364+
$0.43637
728+
$0.41560
1,092+
$0.34287
5,096+
$0.30131
10,192+
$0.28053
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 10132450-1021GLF rectangular connector header by Amphenol ICC (FCI). These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 10132450-1021GLF ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Amphenol ICC (FCI) for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
Related Products
Samtec Inc.
ZSS-105-09-G-D-1315-LL
Samtec Inc.
TSW-105-14-L-D-LL
Samtec Inc.
TFM-106-02-L-D-LC
Sullins Connector Solutions
PBC23DADN
Samtec Inc.
FTSH-117-01-L-DH
Samtec Inc.
TSM-104-03-S-SV-P-TR
Preci-Dip
830-80-043-40-001101
Harwin Inc.

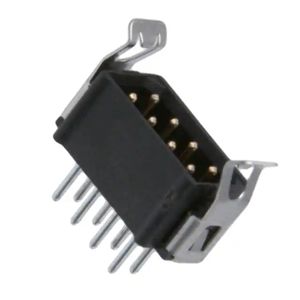

M80-8670805
Harwin Inc.

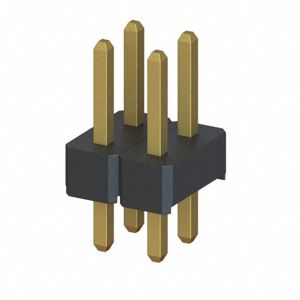

M22-2520205
